10pcs EE16 BOBBIN 6 LEG

Description

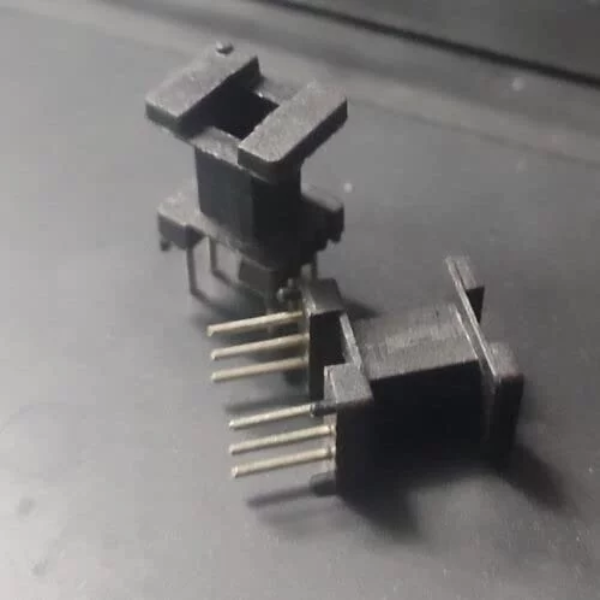

EE16 Transformer Bobbin :-

Streamline your custom magnetic component manufacturing and prototyping with our premium 10pcs EE16 BOBBIN 6 LEG set. Engineered precisely for electrical engineers, PCB designers, and electronics hobbyists, these high-quality EE16 transformer bobbin housings serve as the foundational coil formers needed to wind high-frequency transformers, inductors, and specialized chokes.

Each bobbin in this 10-piece value pack is injection-molded from a premium, high-density thermosetting plastic compound. This professional-grade material boasts exceptional flame retardancy, superior electrical insulation properties, and excellent structural rigidity, ensuring it easily withstands the physical tension of high-speed automatic winding machines. Designed specifically to pair seamlessly with standard EE16 ferrite cores, these bobbins provide tight geometric tolerances that minimize leakage inductance and maximize electromagnetic efficiency.

Featuring a robust 6-pin horizontal layout (3 legs on each side), these bobbins offer reliable, secure mechanical mounting for printed circuit board (PCB) layouts. The rigid metal pins are engineered for clean solderability, establishing a stable electrical connection that stands up to continuous thermal cycles inside enclosed power units.

Key Benefits

• Optimized 6-Pin Layout: The 3+3 dual-in-line configuration provides outstanding structural stability on through-hole printed circuit boards while accommodating multi-winding transformer schematics.

• High Thermal Resistance: Molded from specialized heat-resistant polymer that won’t distort, crack, or warp under the intense heat of hand soldering or wave soldering production lines.

• Precision Winding Channels: Features a smooth, clean winding window with perfectly rounded edges to prevent wire scraping or insulation failure when winding fine copper magnet wire.

Frequently Asked Questions (FAQs)

What standard ferrite cores are compatible with these bobbins?

These bobbins are explicitly designed to match standard EE16 (also frequently categorized as E16) ferrite core sets. They provide an exact, wiggle-free physical fit for standard E-shaped magnetic cores.

Are the pins pre-tinned for easier through-hole soldering?

Yes, the 6 alloy pins come pre-treated with a solder-friendly finish. This ensures rapid heat transfer and exceptional wetting when applying solder, whether you are assembling prototypes by hand or utilizing automated wave soldering.

Can these bobbins handle high-frequency SMPS applications?

Absolutely. Due to their low-loss dielectric construction and robust material composition, these bobbins are ideal for high-frequency Switched-Mode Power Supplies (SMPS), DC-DC converters, and inverter circuits operating up to several hundred kilohertz.
